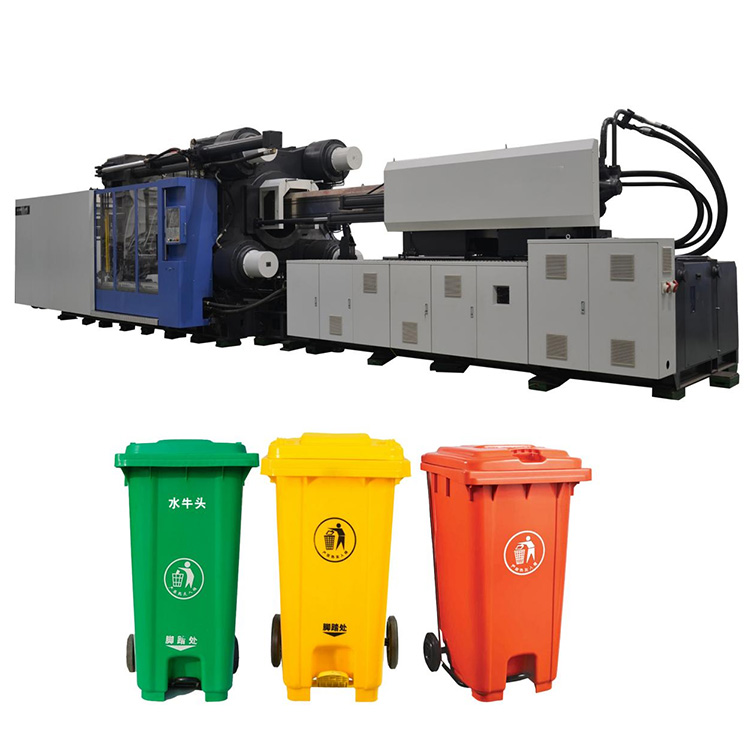

Two Platen Moulding Injection Machine

Horizontal injection molding machines include Two platen moulding injection machine and three plate injection molding machine. The two platen injection moulding machine directly uses high pressure oil cylinder to realize high pressure mold locking, and the mold locking force can be set at will according to the actual needs.

Characteristic and advantage of the two platen moulding injection machine?

The opening mode force of the open mode hydraulic cylinder is small, and the opening mode force of the open mode hydraulic cylinder of the two platen injection moulding machine is blow 110T. It is half of the mold opening force of the three-plant injection molding machine at the same tonnage. The hydraulic cylinder with small mold opening force is easy to be processed, easy to maintain in the actual use process, has a long service life, and is not easy to be damaged. Due to the long opening trip, it is especially suitable for plastic product with larger cavity and deep cavity products.

Mode locking force can be set freely. The two platen injection moulding machine can change the mode locking force by changing the hydraulic cylinder number and the hydraulic cylinder working force. The two platen injection moulding machine is an oil pressure injection molding machine, which can be automatically corrected, and the mode locking force is more constant and stable.

Mode locking accuracy is relatively high. The error of the locking force set by the two-plant injection molding machine and the actual generated locking force is small, so the actual mode locking force can be tested by measuring the oil pressure of the hydraulic cylinder. The mode locking force is controlled by the computer, and can realized digital setting, screen display and storage functions.

Two platen moulding injection machine adopts direct pressure locking mode. The parallelism of the static template is easy to adjust, and generally the time required to adjust to the process required parallelism(0.1mm/m) is very short.

Machine parameter:

The component of the ZOWEITE® two platen moulding injection machine.

Plastic injection molding or injection molding machine, usually screw and plunger type.The screw injection molding machine of the second plate machine mainly includes the injection device, the mold closing device and the hydraulic transmission system and the electrical control system parts.Injection device, mainly composed of screw, cylinder, nozzle, hopper, metering device, injection seat and mobile hydraulic cylinder, mainly composed of front / rear fixed template, moving template, moving template, Corlin column, mode hydraulic cylinder, mode shift hydraulic cylinder, mode locking mechanism, mold adjustment device, product top device, etc.The mold closing device of the two-plate injection molding machine is mainly composed of moving template, static template, rotary nut system, hydraulic jacking system, fast mold shifting system and high pressure hydraulic cylinder mode locking system.The mode locking high-pressure hydraulic cylinder provides the mode locking force.

ZOWEITE® have 30 years experience in this industry and our factory got SGS/ISO certificate. We have two platen and three platen injection molding machine. We will recommend the suitable machine according clients requirements.
