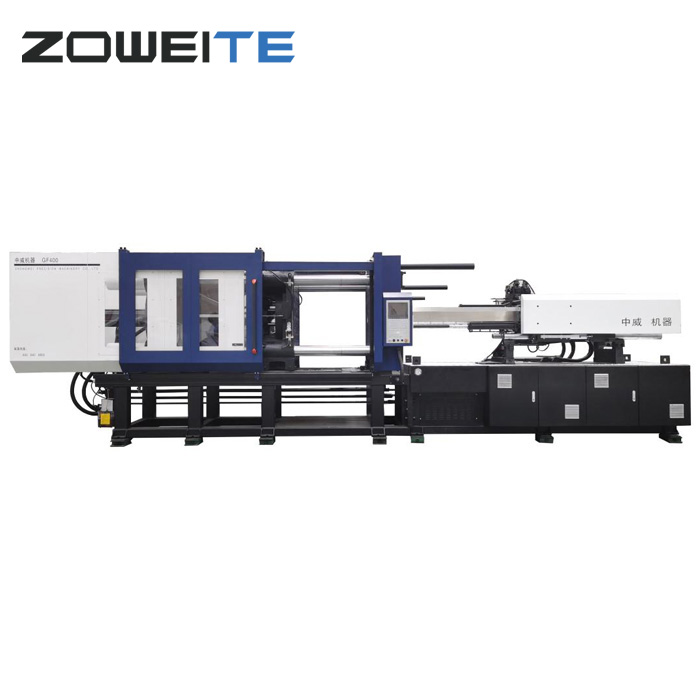

ZOWEITE® Vegetable And Fruit Injection Molding Machine made in China is a special machine for producing fruit and vegetable baskets. It is a special model for disposable plastic fruit basket production equipment developed by our company according to the characteristics of fruit and vegetable baskets. The vegetable and fruit basket injection molding machine has the latest domestic technology, novel structure, high speed, high efficiency, low dryness and energy saving.
Vegetable And Fruit Injection Molding Machine can be used for the turnover of apples, grapes, pears and other fruits, as well as daily necessities such as vegetables and eggs. It is suitable for processing recycled materials, with low cost and short forming cycle, which greatly reduces the production cost.
ZOWEITE® Vegetable and fruit injection molding machine parameter
Technical parameter |
GF400K |
GF530K |
|
Screw Diameter |
mm |
90 |
95 |
Screw L/D Ratio |
L/D |
18.3 |
19 |
Max. Shot Weight(PS) |
g |
2170 |
2862 |
Injection Pressure |
MPa |
116 |
125 |
Screw Torque & Speed |
rpm |
0-190 |
0-180 |
Clamping Force |
kN |
4000 |
5300 |
Opening Stroke |
mm |
720 |
790 |
Space Between Tie Bars (H*V) |
mm |
740X700 |
820X800 |
Max. Mold Height |
mm |
720 |
820 |
Min. Mold Height |
mm |
340 |
370 |
Ejector Stroke |
mm |
170 |
200 |
Ejector Force |
kN |
110 |
110 |
Hydaulic System Pressure |
MPa |
14 |
14 |
Pump Motor Power |
kW |
52 |
62 |
Heater Power |
kW |
21 |
31 |
Oil Tank Capacity |
L |
600 |
700 |
Machine Dimensions(approx.)(L*W*H) |
|
7.5X1.7X2.5 |
8.2X2.3X2.6 |
ZOWEITE® vegetable and fruit basket injection molding machine advantage
Vegetable and fruit basket injection molding machine we provide is specially designed for fruit basket with following advantages:
● It is our mature technology, we got highly reply from customers who use this machine for baskets.
● With special designed plasticizing system,with high efficiency and durability.
● Simultaneous execution of multiple actions to shorten the molding cycle.
● Equipped with patented basket taking mechanism. The machine is full automatic,safe, efficient and labor-saving.
● The cycle time is about 23 seconds at most. About 3-5 seconds faster than machines without simultaneous execution of multiple actions. The shortest cycle time could be 18 seconds if mold with good cooling system.
Company Profile
Tianjin ZOWEITE Precision Machinery Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling various types of high-precision, energy saving, stable performance injection molding machines in China and overseas. Mission, meeting the needs of customers and promoting customer growth. Helping customers to obtain strong competitiveness and sustained profitability. Vision, to develop injection molding machines for helping our society and our planet. Over the past 30 years in injection molding machines industry, ZOWEITE won the trust from our professional customers.With its strong R&D, design and innovation capabilities, ZOWEITE continues to provide customers with personalized machines that adapt to different products requirements.
How about our after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Can we visit your factory?
Sure. We are in Tianjin. For overseas customer, you can fly to Tianjin Binhai International Airport. We can pick you up in the Airport. Or Beijing Capital International Airport. Currently we provide visit online by video call for the COVID-19.
